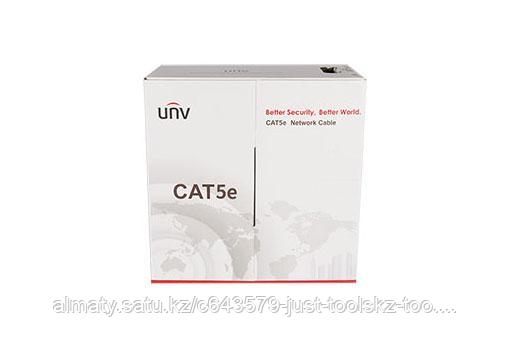

CAB-LC2100B-IN UTP кабель 5E

Content of Data SheetProduct modelCAB-LC2100B-INProduct specificationHSYV-5e 4×2×0.50 Test StandardYD/T1019-2013ConductorMaterialOFC(Oxygen free copper)AWG24Nom.O.D.(mm)0.5±0.005 mmDC resistance≤95 Ω/kmInsulationMaterialHDPEThickness0.2±0.02 mm Diameter0.9±0.05 mm ColorBlue/White- BlueGreen/White-GreenOrange/White-OrangeBrown/White-BrownPitchOffset pitch≤25 mmElectrical Characteristics:FrequencyCharacteristic impedanceRLATTNEXTMHzohm≥dB/100m≤dB/100m≥dB/100m1100±1520.02.065.34100±1523.04.156.310100±1525.06.550.316100±1525.08.247.320100±1525.09.345.831.25100±1523.611.642.962.5100±1521.517.038.4100100±1520.122.035.3FrequencyFEXTPS NEXTPS FEXTPhase delayMHz≥dB/100m≥dB/100m≥dB/100m≤ns/100m163.862.360.8570.0451.753.348.7552.01043.847.340.8545.41639.744.236.7543.02037.742.834.7542.031.2533.939.930.9540.462.527.835.424.8538.610023.832.320.8537.4Cable pitch≤140 mmSheathMaterialPVC(complies RoHS/REACH)External O.D.5.1±0.3 mmColorGray(RAL7046)Tensile strength>13.5 MpaThickness0.55±0.05 mmSurface PrintingLetter height3.0±0.3 mmColorBlackPrint error & Space1±0.005 mCase numberYesPackingPackingCartonOnce packing dimension350mm*216mm*350mmTwice packing dimension370mm*460mm*370mmTwice packing quantity2 casesPacking length305±1 mRip-cordYesAmbient temperature-20℃～60℃
